OHAUS Navigator NVT Balance – Portable Scale
$595.00 – $790.00
The OHAUS Navigator NVT Series offers fast, durable, high-performance weighing for industrial, lab, education, and field applications. Choose from 8 models.
OHAUS Navigator NVT Balance – Multi-Capacity Portable Scale
The OHAUS Navigator NVT balance is a robust and precise weighing solution designed for portability and performance across education, laboratory, and industrial environments. Built with overload protection and fast stabilization, this series is ideal for daily tasks that require reliable, on-the-go accuracy.
Choose from eight different models with capacities ranging from 2,200g to 22,000g and resolutions from 0.1g to 1g, depending on your application needs. From classroom use to kiwifruit labs and quality control stations, the Navigator NVT offers consistent performance in any setting.
This balance features a bright LCD display, a durable stainless steel pan, and intuitive operation. Designed for mobility, it includes an AC adapter and can also run for up to 270 hours on standard batteries. Its lightweight construction (just 1.5 kg) makes it perfect for fieldwork or mobile testing stations.
⚙️ Key Features
-
Compact, portable design with reinforced ABS housing
-
400% overload protection
-
1-second stabilization time for quick results
-
Optional communication ports: USB, RS232, Ethernet
-
Backlit LCD for clear visibility
-
Available weighing units: g, kg, lb, oz, lb:oz, N
📦OHAUS Navigator NVT balance are Ideal For:
-

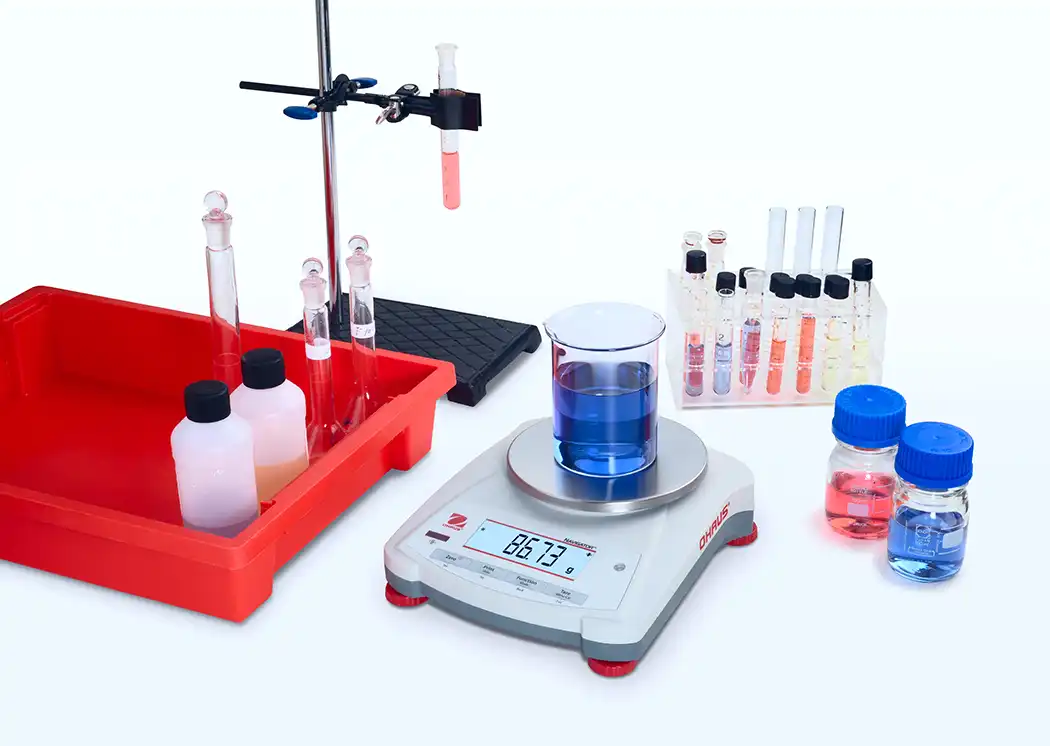

Schools and universities – science classrooms, labs
-
Research and industry – sampling, mixing, and batch weighing
-
Agriculture – accurate field weighing for produce and soil
-
Food preparation – portion control, quality testing
📩 Need help choosing a model?
Our team is ready to assist with product matching, calibration certs, or compliance needs – sales@accuweigh.co.nz
| Weight | 1.5 kg |
|---|---|
| Weighing Capacity | NVT2201 2,200g x 0.1g, NVT4201 4,200g x 0.1g, NVT6201 6,200g x 0.1g, NVT10201 10,200g x 0.1g, NVT2200 2,200g x 1g, NVT6200 6,200g x 1g, NVT12000 12,000g x 1g, NVT22000 22,000g x 1g |
Technical Specifications
📐 Technical Specifications – OHAUS Navigator NVT Series
| Model | Capacity (g) | Readability (g) | Repeatability (g) | Linearity (g) | Pan Size (mm) | Stabilization Time (s) | Battery Life | Net Weight |
|---|---|---|---|---|---|---|---|---|
| NVT2201 | 2,200 | 0.1 | 0.1 | 0.2 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT4201 | 4,200 | 0.1 | 0.1 | 0.2 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT6201 | 6,200 | 0.1 | 0.1 | 0.2 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT10201 | 10,200 | 0.1 | 0.1 | 0.2 | 230 × 174 | 1.5 | 200 hrs | 1.5 kg |
| NVT2200 | 2,200 | 1.0 | 0.2 | 2.0 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT6200 | 6,200 | 1.0 | 0.2 | 2.0 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT12000 | 12,000 | 1.0 | 0.2 | 2.0 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
| NVT22000 | 22,000 | 1.0 | 0.2 | 2.0 | 230 × 174 | 1.0 | 270 hrs | 1.5 kg |
⚙️ Additional Technical Details (All Models)
-
Display: LCD with white backlight, 20 mm digit height
-
Construction: ABS housing with stainless steel pan
-
Tare Range: To full capacity by subtraction
-
Overload Protection: 400% of rated capacity
-
Operating Temp: 10 °C to 40 °C (non-condensing)
-
Power Options: AC adapter (included) or 4×C batteries (not included)
-
Communication Interfaces (optional): RS232, USB Host/Device, Ethernet
-
Dimensions (W × D × H): 240 × 250 × 74 mm
-
Shipping Dimensions: 385 × 335 × 170 mm
-
Shipping Weight: 2.3 kg
🧪 Built-In Application Modes
-
Weighing
-
Parts Counting
-
Percent Weighing
-
Checkweighing
🧳 Accessories Available
-
RS232 Interface (83032107)
-

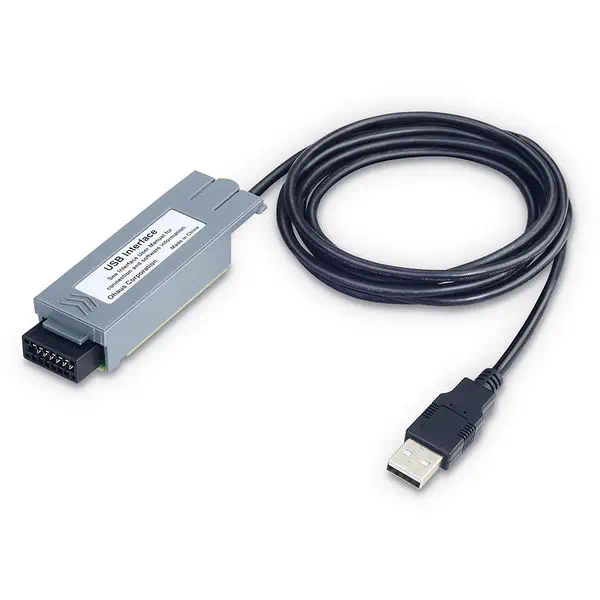

USB Interface (83032108)
-
Ethernet Interface (83032109)
-
Carrying Case (30467963)
-
Printer SF40A (30064203)
-
Weigh-Below Hook Kit (30628012)
Reach out to one of our Knowledgeable Team members for more information or any Calibration Certificate requirements
